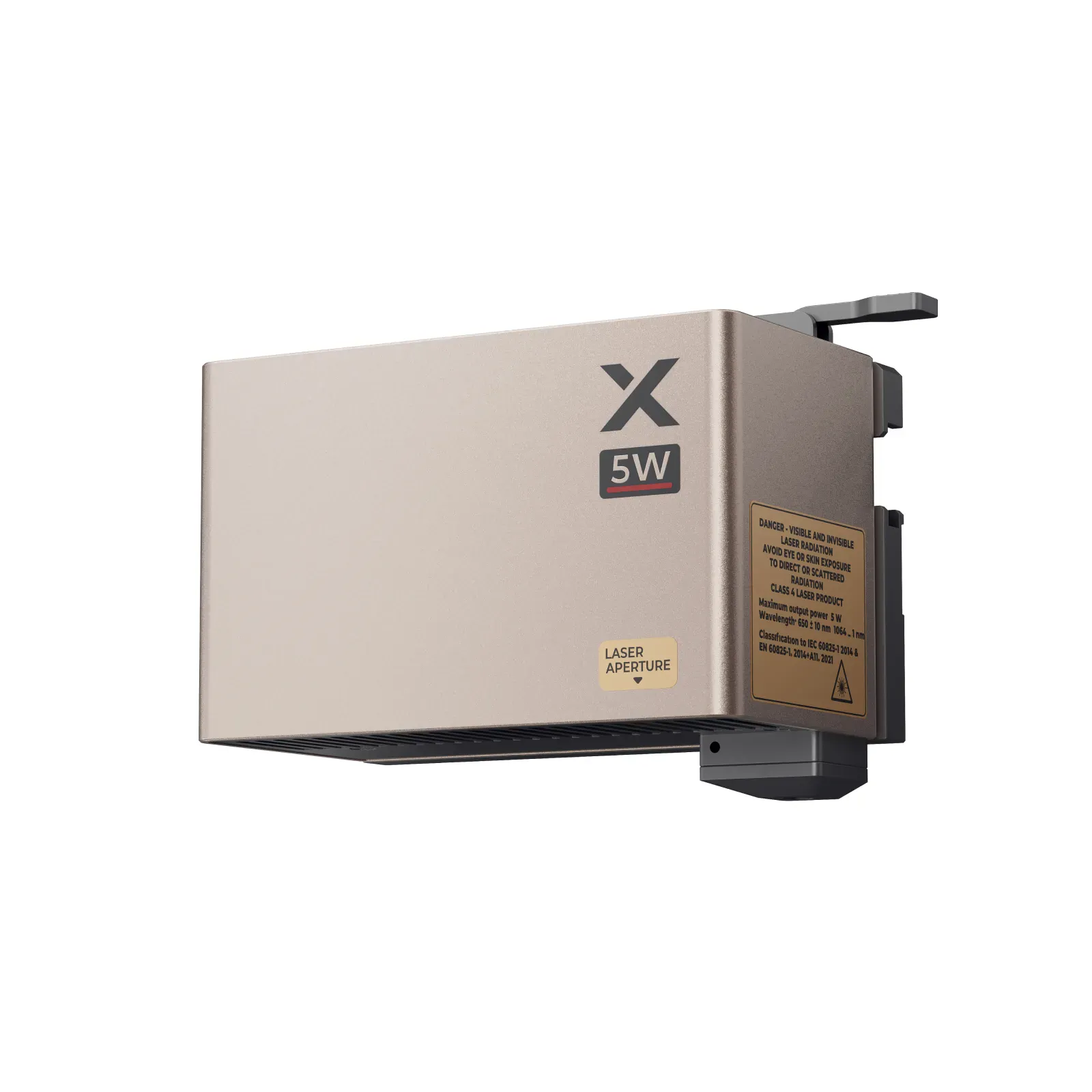

xTool P3 5W IR Laser Module

The xTool P3 5W Infrared Module is an add-on accessory specifically designed for the xTool P3 laser machine. It is a semiconductor-based infrared laser module with a maximum output power of 5W, intended for high-precision scoring and engraving on a variety of materials, especially metals and plastics. This module is only compatible with the xTool P3 and cannot be used with other xTool models. It is powered directly by the P3 machine and does not require an additional power supply.

For the official user guide, see the xTool P3 5W Infrared Module User Guide.

---

Key Features

• Laser Type: Infrared light, with a beam divergence of 1.5 mrad (IEC 60825-1 Default evaluation C6=1).
• Output Power: Maximum 5W.
• Red Indicator Laser: 0.39 mW, with a spot size of 0.03 mm for precise positioning.
• Pulse Operation: Emits laser pulses at a frequency of 25–30 kHz (not continuous wave).
• Processing Area: 650 mm × 426 mm.
• Maximum Material Height: 180 mm.
• Maximum Speed: Engraving up to 1,000 mm/s; scoring up to 300 mm/s.
• Lifespan: Theoretically about 8,000 hours.
• Size & Weight: 136.5 mm × 94.5 mm × 92.5 mm; 850 g.
• Hot-Swapping: Supported, but frequent plugging/unplugging is discouraged to avoid port damage.
• No Extra Power Supply Needed: Powered by the xTool P3.
• Firmware Requirement: Requires firmware version 40.23.005 or later for operation (details).

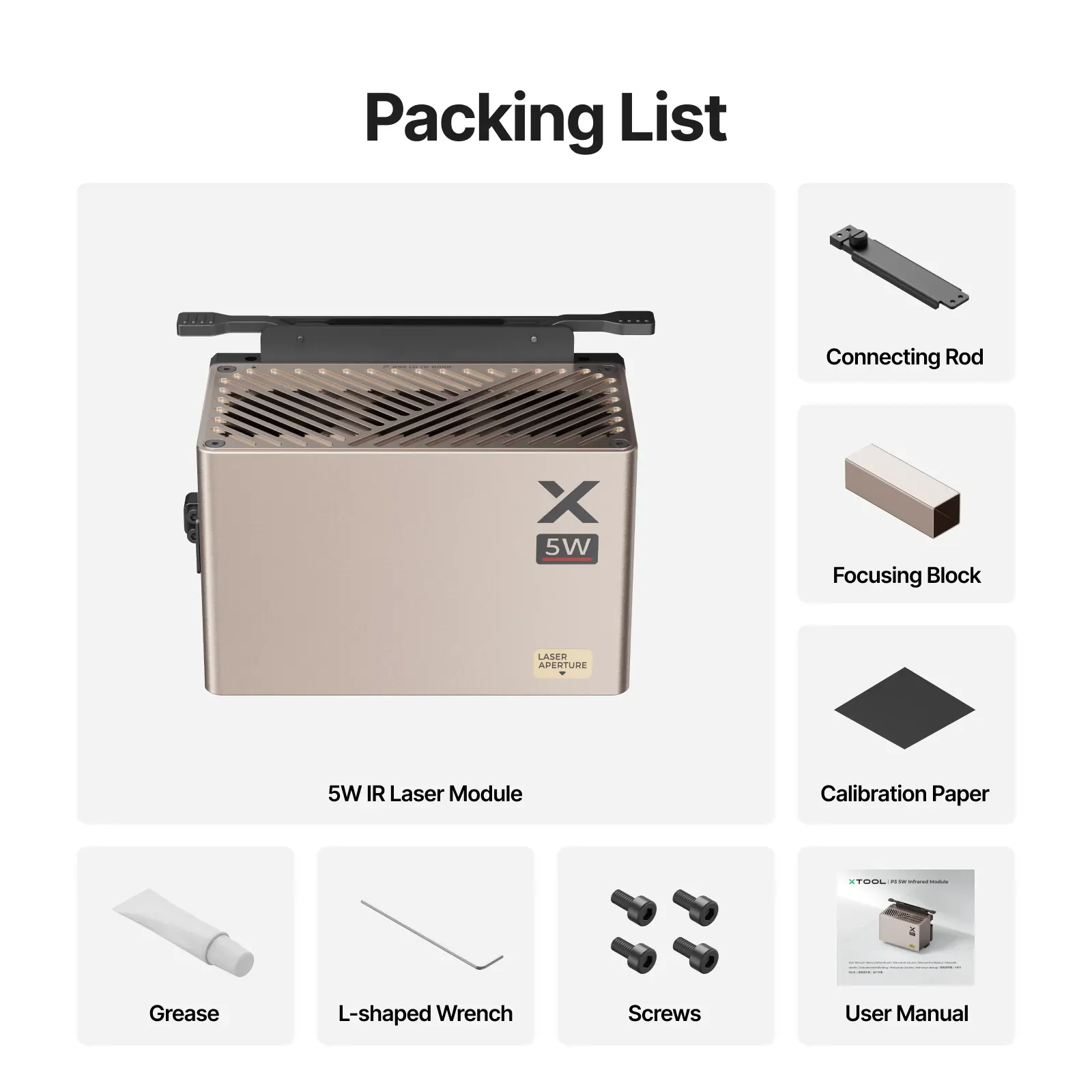

• Included Accessories: Module fixture, focus block (calibration block), cardboard, grease, hex key, screws, user manual.

---

Applications

The xTool P3 5W Infrared Module is designed for:

• Scoring and Engraving (not cutting) on a wide range of materials, including:

  • Gold
  • Brass
  • Leather
  • Fabric
  • Rubber
  • Cement
  • Stone
  • Anodized metal
  • Stainless steel

  For a full list, see FAQ on xTool P3 5W Infrared Module.

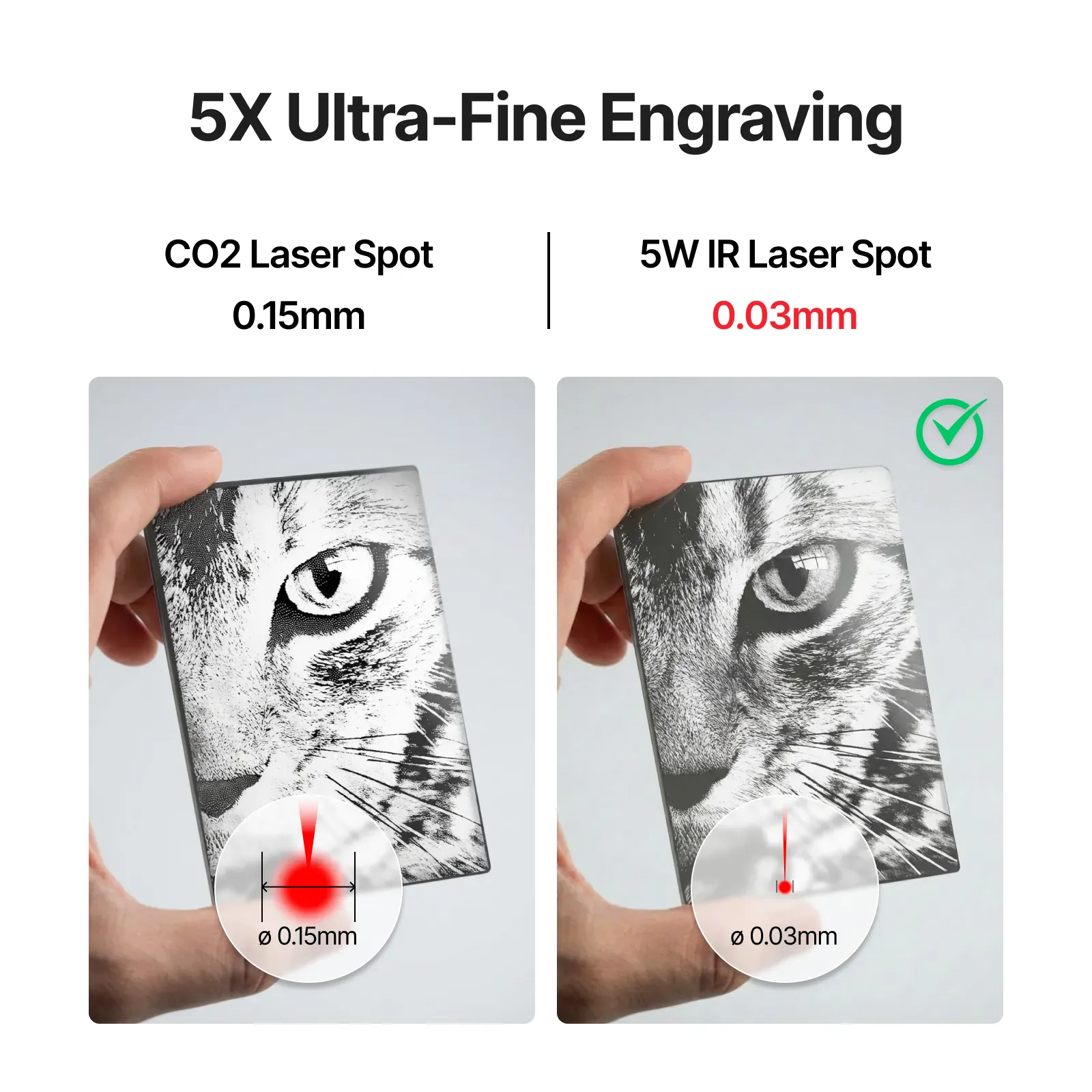

• High-Precision Marking: The small spot size (0.03 mm) allows for detailed and fine engraving, especially on metals and plastics.

• Batch Production: The large processing area and high speed make it suitable for batch engraving tasks.

---

Limitations

• Not for Cutting: The module does not support cutting any material.

• Not for Mirror-Finish Metals: Processing mirror-finish metals is not supported due to the risk of laser reflection and module damage.

• No Color Engraving or Embossing: The module cannot color engrave or emboss metal materials.

• Processing Modes Not Supported:

  • Use conveyor feeder
  • Curved material
  • Auto mode of rotary attachment

  See details.

---

Installation & Use

1. Installation: The module is mounted onto the xTool P3’s guide rail and connected to the pre-installed laser module. Protective covers must be removed and kept for storage.
2. Calibration: Before use, perform z-axis and x/y-axis calibration using the included focus block and art scratch paper. This ensures accurate processing positions (calibration guide).
3. Software: Use the latest xTool software, select the 5W Module as the laser head, and follow the recommended settings for best results.
4. Maintenance: Lubricate rollers with the included grease if sliding becomes difficult. Tighten all screws if engraving results become blurry.

---

Troubleshooting

• No Laser Output: May be due to overheating; pause and allow the module to cool before resuming.
• Module Not Recognized: Update software and firmware to the latest versions.
• Fan Not Working: Unplug and replug the connection cable after a short wait.
• Blurry Engraving: Ensure the module is securely fastened.

For more troubleshooting, see the FAQ.

---
